The Curved Navigation in Flutter

Wednesday, May 5th, 2021

•

6 min read

•

What is Flutter?

Flutter is an open-source UI software development kit created by Google. It helps in creating cross-platform mobile applications using a single codebase.

What is a Navbar?

A navigation bar is a section of a GUI intended to provide users with the ability to switch between different slices of the app with a single tap.

The curved_navigation_bar is a package used to implement a simple but elegant-looking navbar in a flutter app. The curved_navigation_bar package can replace the bottom navbar provided by the material package from android. Read More

So, let's start by creating a new flutter project.

flutter create [project-name]

Go ahead and clear all the boilerplate code in the lib/main.dart and make a lib/pages/index.dart while you are at it.

lib/main.dart

import 'package:flutter/material.dart';
import 'package:flutter_navs/pages/index.dart';

void main() {
  runApp(MyApp());
}

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        title: 'The Curved Navbar',
        theme: ThemeData(
          primarySwatch: Colors.blue,
        ),
        debugShowCheckedModeBanner: false,
        home: IndexPage());
  }
}

lib/pages/index.dart

Make a stateful widget called "IndexPage" in the lib/pages/index.dart file.

import 'package:flutter/material.dart';

class IndexPage extends StatefulWidget {
  @override
  _IndexPageState createState() => _IndexPageState();
}

class _IndexPageState extends State<IndexPage> {
  @override
  Widget build(BuildContext context) {
    return Container(
      child: Text("Index page"),
    );
  }
}

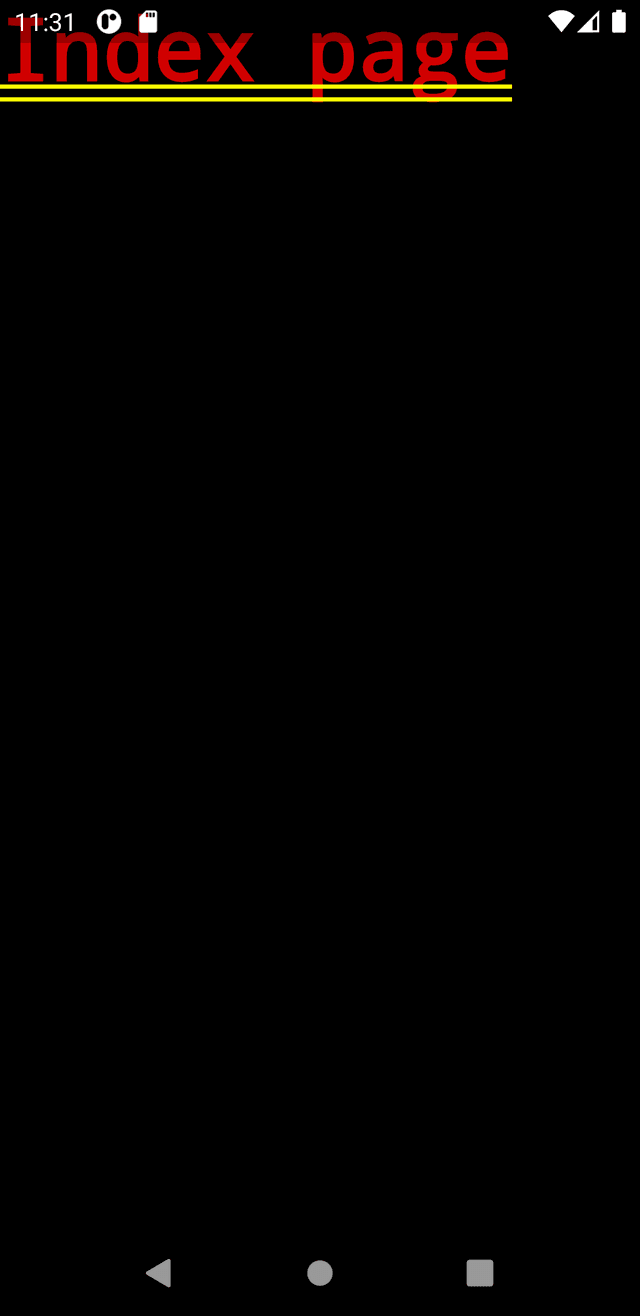

The screen should look something like this.

data

The next step is to add the curved_navigation_bar package into the _pubspec.yaml file.

From the readme of curved_navigation_bar at pub.dev, we can add the following line to the pubspec.yaml file.

dependencies:
  curved_navigation_bar: ^0.3.7 #latest version

Imagine we have five pages.

  1. Home
  2. Wallet
  3. New
  4. Explore
  5. Account

Let's create these pages.

Before we start making the pages, we should preview these pages as we make them. So, to do that, we must edit /lib/pages/index.dart.

lib/pages/index.dart

import 'package:flutter/material.dart';

//import all the pages here
//eg: import 'package:flutter_navs/pages/wallet.dart';


class IndexPage extends StatefulWidget {
  @override
  _IndexPageState createState() => _IndexPageState();
}

class _IndexPageState extends State<IndexPage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: WalletPage(),//change the widget to preview it
    );
  }
}

1. Home

/lib/pages/home.dart

import 'package:flutter/material.dart';

class Home extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        child: Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(
              Icons.home,
              size: 30,
            ),
            Text(
              "The Home Page",
              style: TextStyle(fontSize: 30),
            ),
          ],
        ),
      ),
    );
  }
}

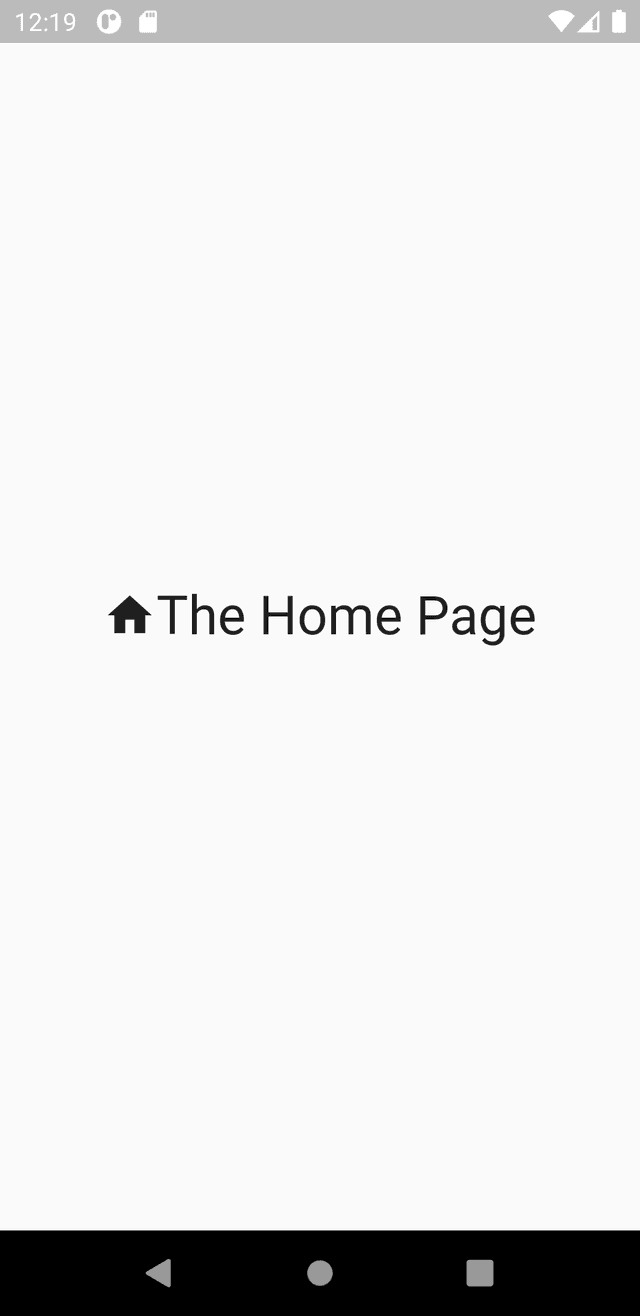

Which will look something like this:

data

2. Wallet

/lib/pages/wallet.dart

import 'package:flutter/material.dart';

class WalletPage extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        child: Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(
              Icons.account_balance_wallet_rounded,
              size: 30,
            ),
            Text(
              "The Wallet Page",
              style: TextStyle(fontSize: 30),
            ),
          ],
        ),
      ),
    );
  }
}

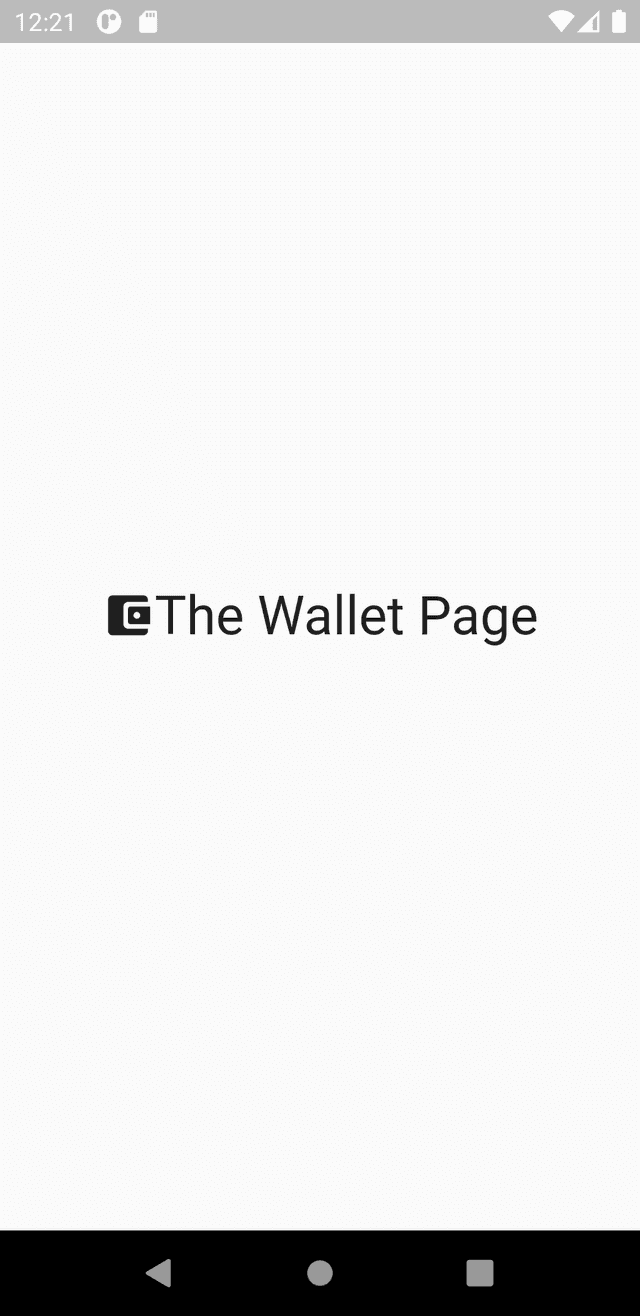

Which will look something like this:

data

3. New

/lib/pages/new.dart

import 'package:flutter/material.dart';

class NewPage extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        child: Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(
              Icons.add,
              size: 30,
            ),
            Text(
              "The add new Page",
              style: TextStyle(fontSize: 30),
            ),
          ],
        ),
      ),
    );
  }
}

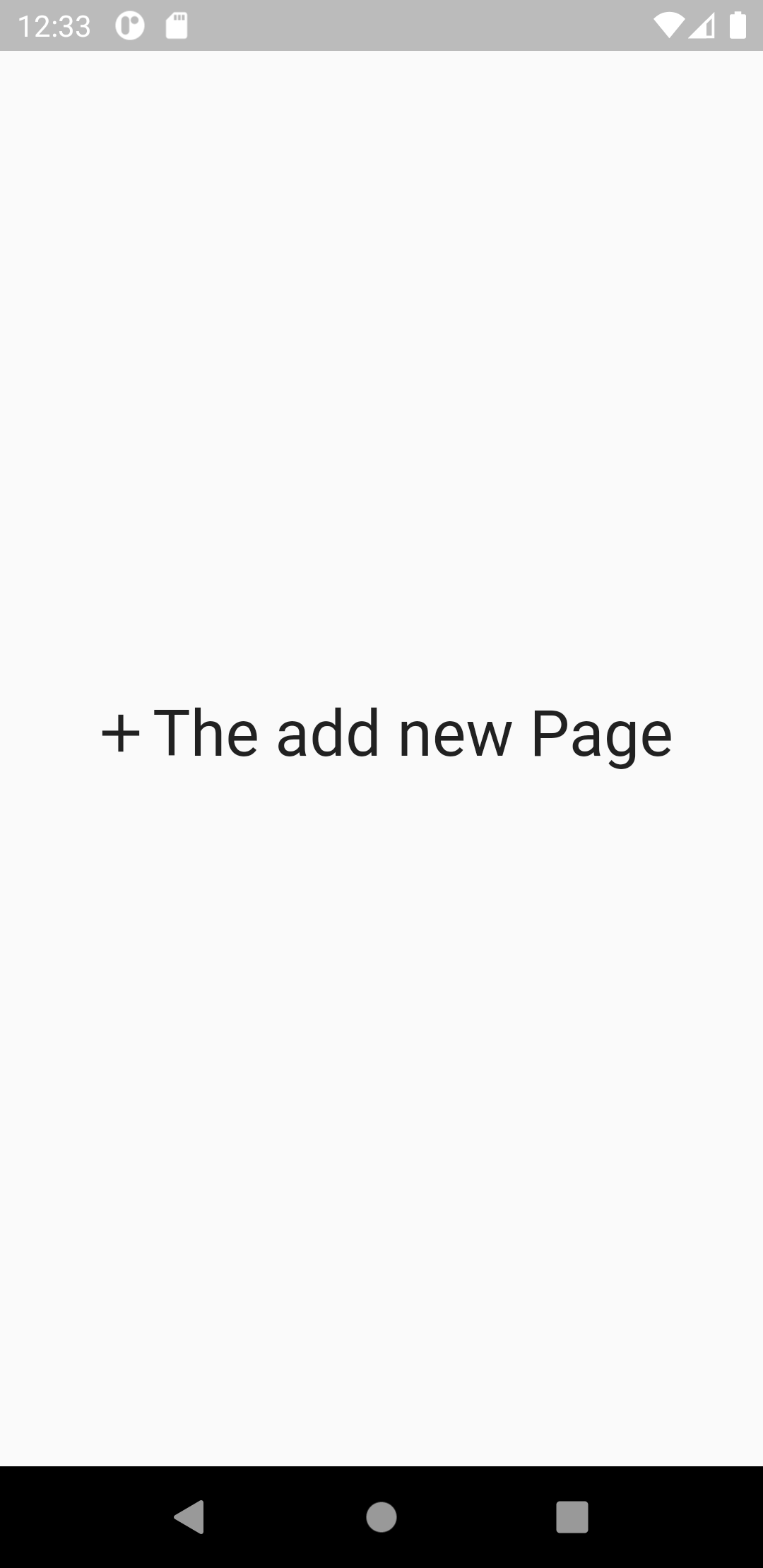

Which will look something like this:

data

4. Explore

/lib/pages/explore.dart

import 'package:flutter/material.dart';

class Explore extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        child: Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(
              Icons.explore_rounded,
              size: 30,
            ),
            Text(
              "The Explore Page",
              style: TextStyle(fontSize: 30),
            ),
          ],
        ),
      ),
    );
  }
}

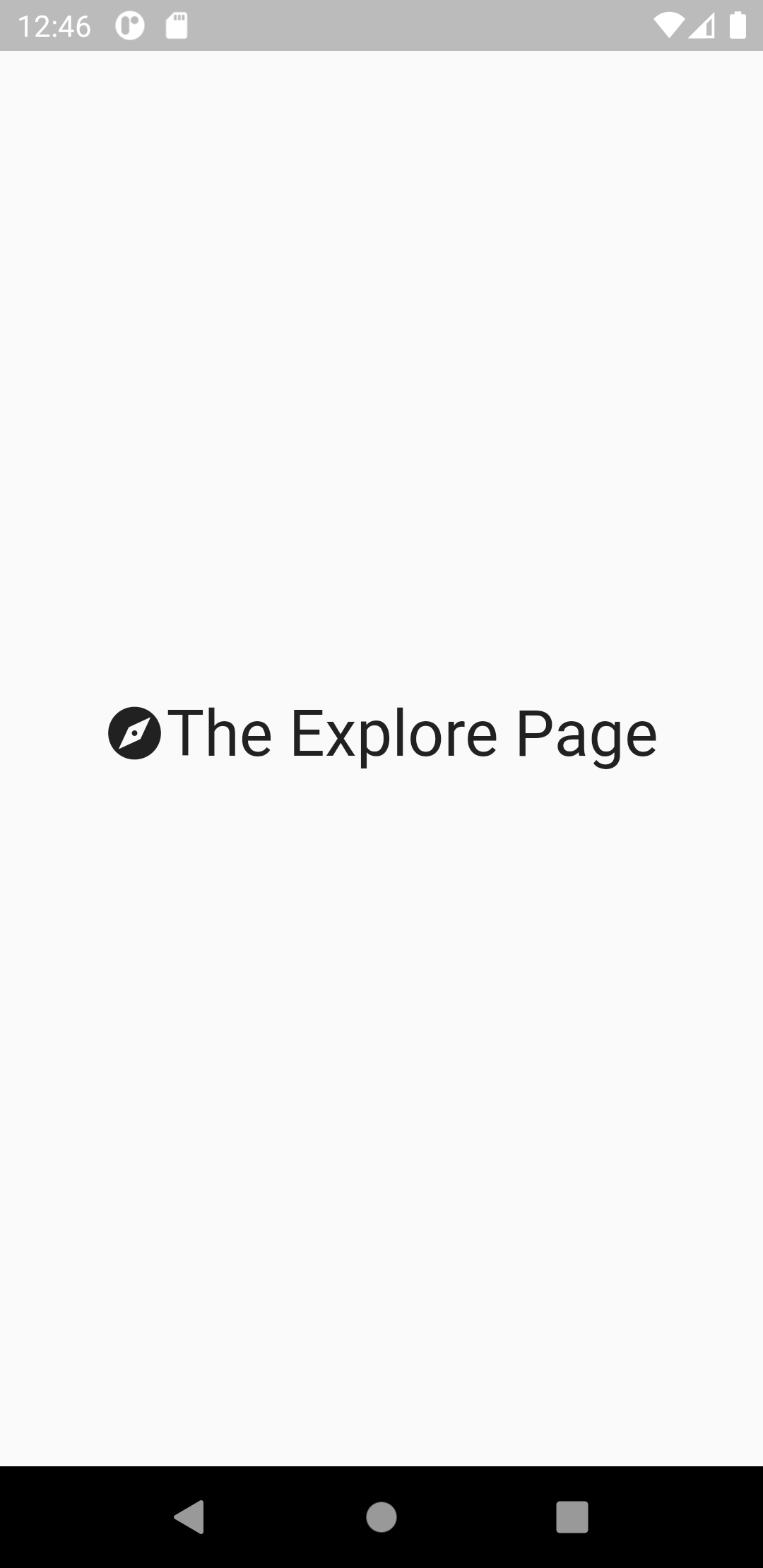

Which will look something like this:

data

5. Account

/lib/pages/account.dart

import 'package:flutter/material.dart';

class Account extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        child: Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(
              Icons.account_circle_rounded,
              size: 30,
            ),
            Text(
              "The Account Page",
              style: TextStyle(fontSize: 30),
            ),
          ],
        ),
      ),
    );
  }
}

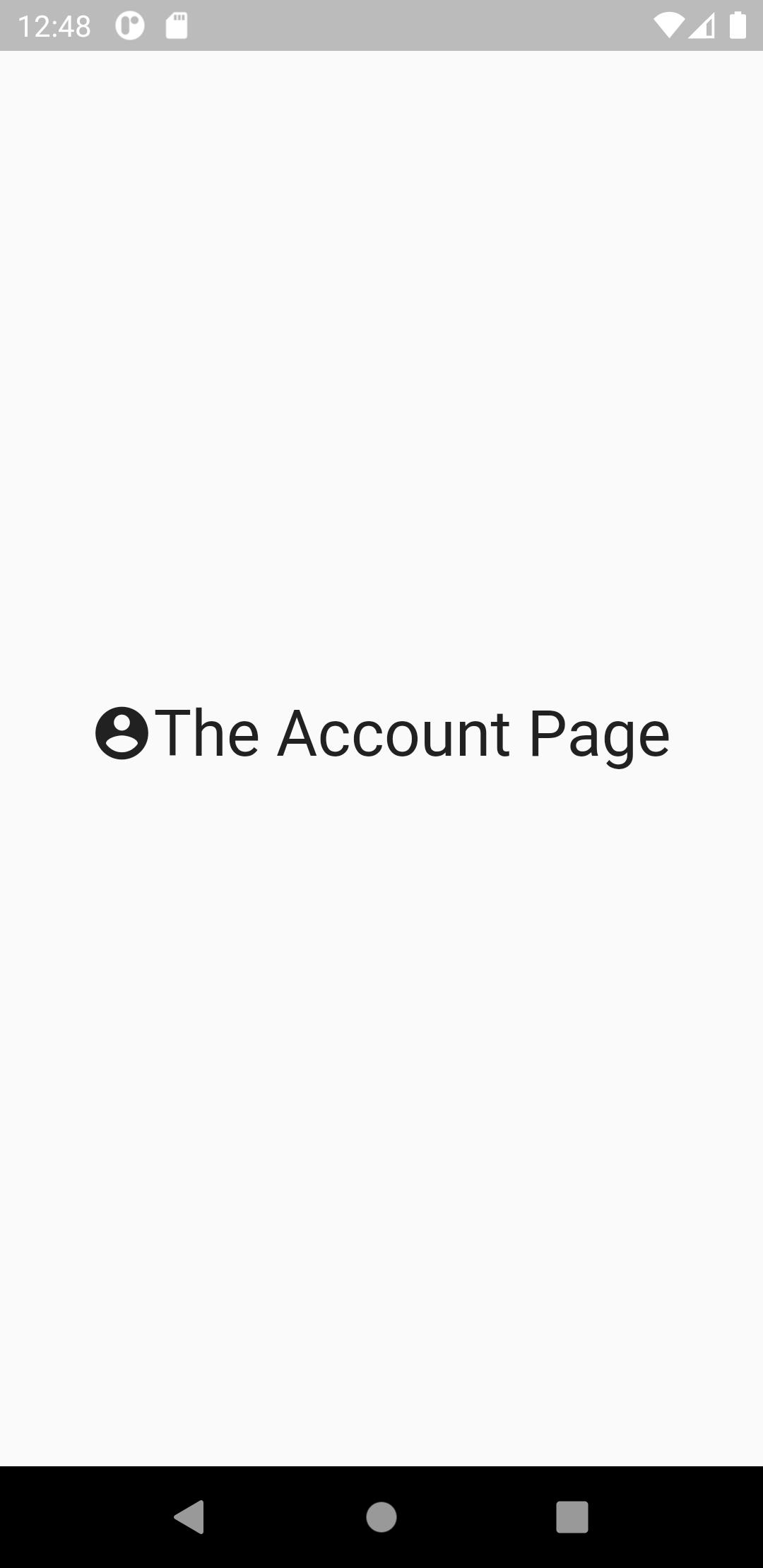

Which will look something like this:

data

Now let's edit the index page to access all these pages using the navbar. To do that, first, import the curved_navigation_bar package.

import 'package:curved_navigation_bar/curved_navigation_bar.dart';

Now declare a variable to access the current nav item.

  int _activePage = 0;

Next, declare a list with all the widgets in the order you want to show them because we will be using the index to select it.

final List<Widget> tabs = [
    Home(),
    Explore(),
    NewPage(),
    WalletPage(),
    Account(),
  ];

Now use the curved_navigation_bar as the scaffold's bottomNavigationBar property.

import 'package:flutter/material.dart';
import 'package:flutter_navs/pages/account.dart';
import 'package:flutter_navs/pages/explore.dart';
import 'package:flutter_navs/pages/home.dart';
import 'package:flutter_navs/pages/new.dart';
import 'package:flutter_navs/pages/wallet.dart';
import 'package:curved_navigation_bar/curved_navigation_bar.dart';

class IndexPage extends StatefulWidget {
  @override
  _IndexPageState createState() => _IndexPageState();
}

class _IndexPageState extends State<IndexPage> {
  int _activePage = 0;
  final List<Widget> tabs = [
    Home(),
    Explore(),
    NewPage(),
    WalletPage(),
    Account(),
  ];
  @override
  Widget build(BuildContext context) {
    return Scaffold(
        bottomNavigationBar: CurvedNavigationBar(),
        body:Home()

  }
}

Now, add the attributes used by the Curved navbar, Such as items, index, color, backgroundColor, onTap, etc.

Let's add the list of items we had.

    bottomNavigationBar: CurvedNavigationBar(
        items:[
            Icon(Icons.home, color: Colors.white, size: 30),
            Icon(Icons.explore_rounded, color: Colors.white, size: 30),
            Icon(Icons.add, color: Colors.white, size: 30),
            Icon(Icons.account_balance_wallet_rounded, color: Colors.white, size: 30),
            Icon(Icons.account_circle_rounded, color: Colors.white, size: 30),
          ],
        ), // remember to use the order we used in the list
    body:Home()

Ok, with that out of the way, we can now take care of the background color, animation duration, etc.

    bottomNavigationBar: CurvedNavigationBar(
          color: Colors.blue,
          height: 60,
          backgroundColor: Colors.white,
          animationCurve: Curves.easeInOut,
          animationDuration: Duration(milliseconds: 400),
          items: [
            Icon(Icons.home, color: Colors.white, size: 30),
            Icon(Icons.explore_rounded, color: Colors.white, size: 30),
            Icon(Icons.add, color: Colors.white, size: 30),
            Icon(Icons.account_balance_wallet_rounded,
                color: Colors.white, size: 30),
            Icon(Icons.account_circle_rounded, color: Colors.white, size: 30),
          ],
        ),
    body:Home()

To navigate to a specific page, we update the _activePage variable with the selected value from the navbar. To be accurate, if the second page is selected, the value of _activePage will be 2, and the tabs[_activePage] will give you the widget corresponding to the second page. The widget corresponding to tabs[_activePage] will be the body property for the scaffold.

So, we need to update the value of _activePage. We use the onTap attribute provided by the package.

 onTap: (index) {
            setState(() {
              _activePage = index;
        });
    },

The above code will set the _activePage to the index of the item tapped.

Finally, putting together all the pieces we have:

import 'package:curved_navigation_bar/curved_navigation_bar.dart';
import 'package:flutter/material.dart';
import 'package:flutter_navs/pages/account.dart';
import 'package:flutter_navs/pages/explore.dart';
import 'package:flutter_navs/pages/home.dart';
import 'package:flutter_navs/pages/new.dart';
import 'package:flutter_navs/pages/wallet.dart';

class IndexPage extends StatefulWidget {
  @override
  _IndexPageState createState() => _IndexPageState();
}

class _IndexPageState extends State<IndexPage> {
  int _activePage = 0;
  final List<Widget> tabs = [
    Home(),
    Explore(),
    NewPage(),
    WalletPage(),
    Account(),
  ];
  @override
  Widget build(BuildContext context) {
    return Scaffold(
        bottomNavigationBar: CurvedNavigationBar(
          color: Colors.blue,
          height: 60,
          backgroundColor: Colors.white,
          animationCurve: Curves.easeInOut,
          animationDuration: Duration(milliseconds: 400),
          items: [
            Icon(Icons.home, color: Colors.white, size: 30),
            Icon(Icons.explore_rounded, color: Colors.white, size: 30),
            Icon(Icons.add, color: Colors.white, size: 30),
            Icon(Icons.account_balance_wallet_rounded,
                color: Colors.white, size: 30),
            Icon(Icons.account_circle_rounded, color: Colors.white, size: 30),
          ],
          onTap: (index) {
            setState(() {
              _activePage = index;
              // print(_activePage);
            });
          },
          letIndexChange: (index) => true,
        ),
        body: tabs[_activePage]);
  }
}

The final output should look something like this:

data

Well, That's a wrap, folks! Hope you enjoyed reading!
